LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Product Description

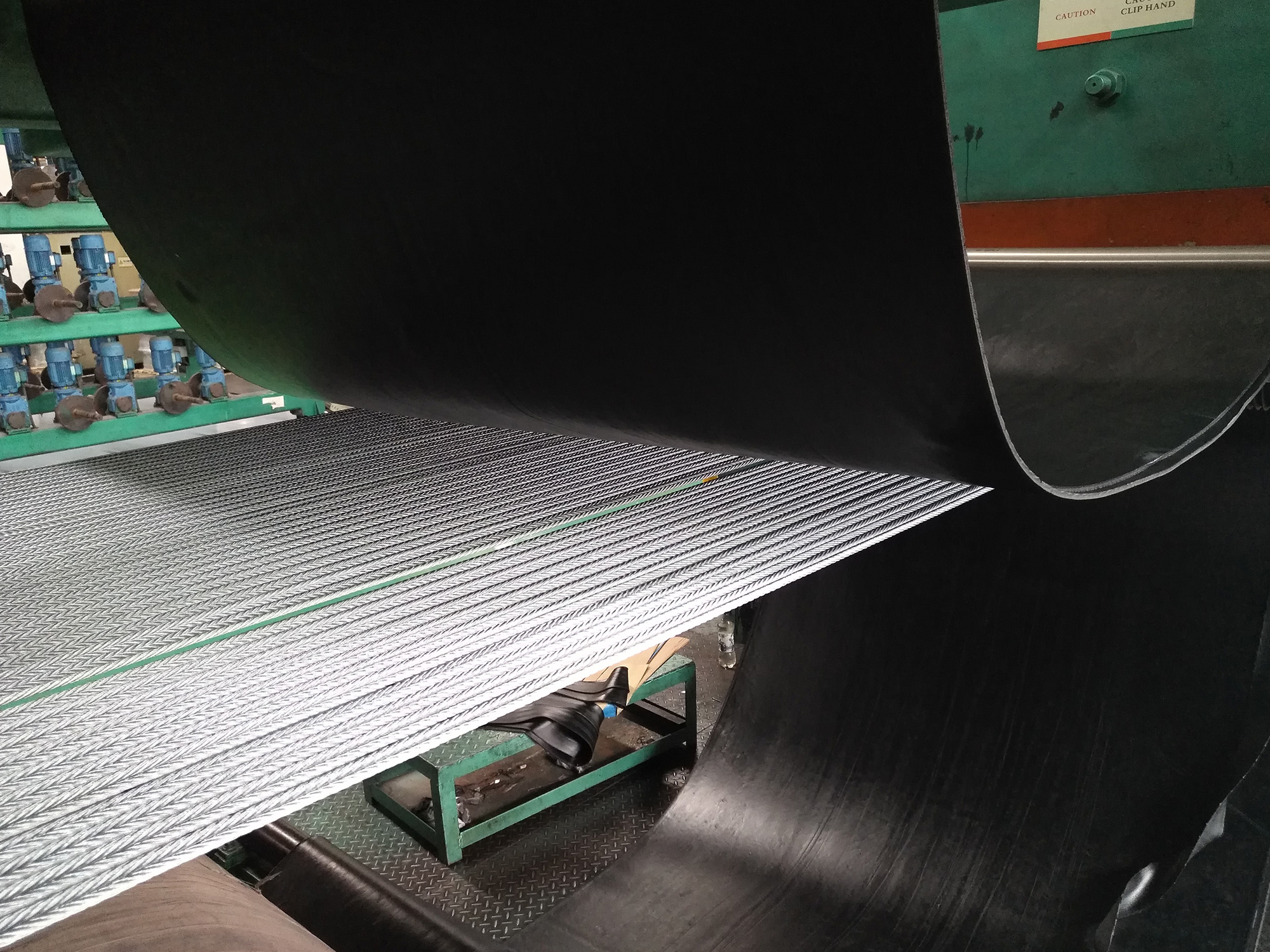

SINOCONVE Steel Cord Conveyor Belt open galvanized steel wire ropes which are vertically well distributed and twined in different directions forms belt cores with excellent adhesive core glue.The upper and lower edge will be covered with rubber layer, which forms the belt body.
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Property


1.High tensile strength 2.Small stretch 3.Uniform force, not easy to deviate 4.Good adhesion of rubber & steel wire rope

Manufacturing standards

GB/T 7984 DIN 22102

JISK 6322 AS 1332-2000

SANS 1173:2005 BS 490

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Specification
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Normal Belt
Strength (N/mm)
Max. Steel
Cord Dia. (mm)

Cord Construction
Min.Cord
Breaking Strength (kN/cord)
Cord Pitch (mm)
Min. Pulley
Diameter (mm)
ST-500
3
7X7
7.6
14
500
ST-630
3
7X7
7
10
500
ST-800
3.5
7X7
8.9
10
500
ST-1000
4
7X7
12.9
12
630
ST-1250
4.5
7X7
16.1
12
800
ST-1600
5
7X7
20.6
12
1000
ST-2000
6
7X7 / 7X19
25.6
12
1000
ST-2500
7.2
7X7 / 7X19
40.0
15
1250
ST-3150
8.1
7X7 / 7X19
50.5
15
1400
ST-3500
8.6
7X7 / 7X19
56.0
15
1600
ST-4000
8.9
7X7 / 7X19
63.5
15
1600
ST-4500
9.7
7X7 / 7X19
76.3
16
1600
ST-5000
10.9
7X7 / 7X19
91.0
17
1800
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Quality control

Step 1: Raw material inspection

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Rubber compound test

Moving die rheometer analyzes the characteristics of Rubber Compound
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Steel cord test

Tensile strength test and elongation test when broken.

Step 2: Advance equipment to guarantee quality from the details

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Calender process

4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Forming process

The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

Step 3:Finished belts inspection

We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Length and surface inspection


LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Thickness inspection


LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

WIdth inspection


Step 4: Technical data test

We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Abrasion test


LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Adhesion strength test


LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

Tensile strength test


LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover

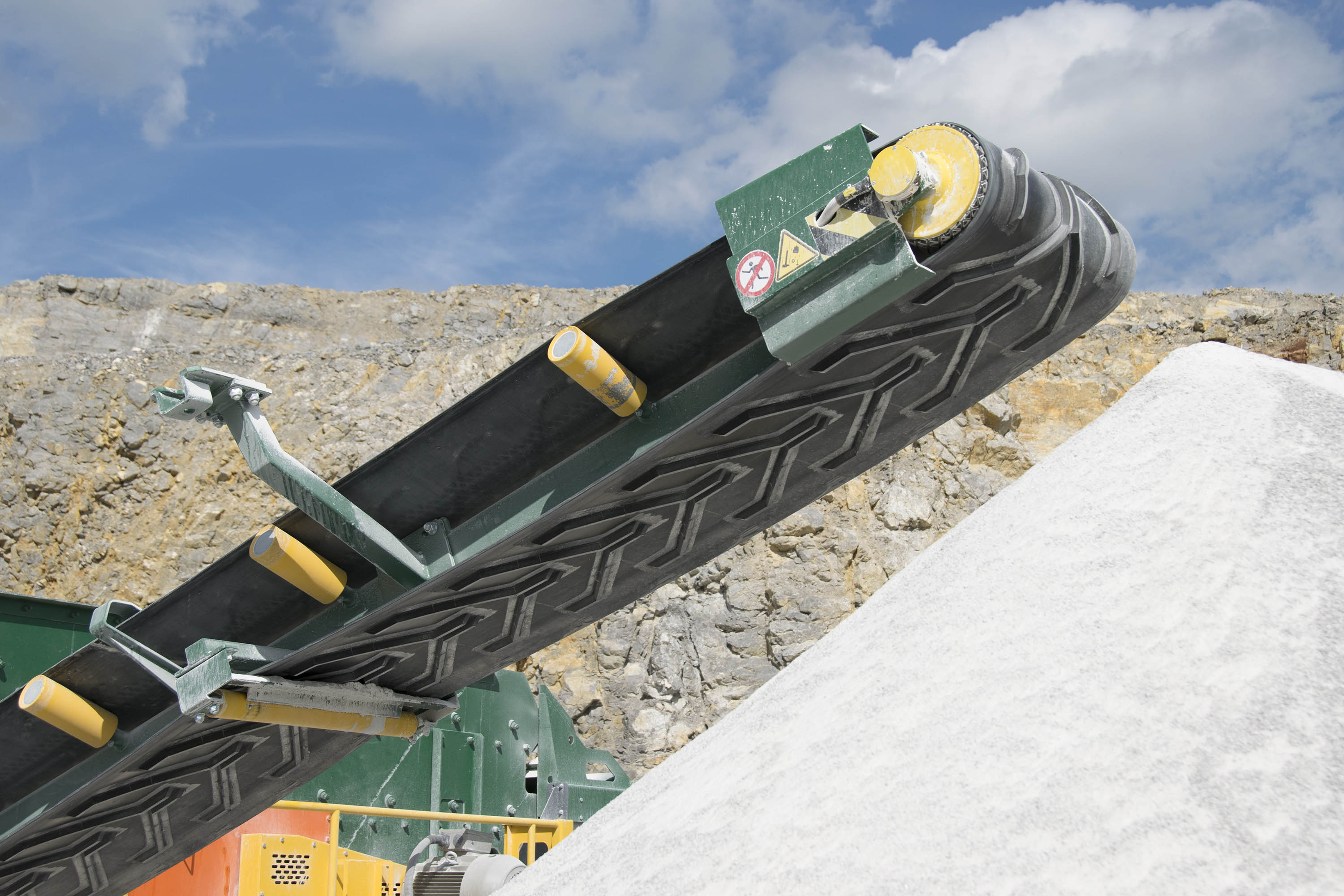

Application
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Gravel transportation
Mineral transportation
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
Grain transportation
Tilt transportation
Company Information
LOGO OEM ST2000 Steel Cord Rubber Conveyor Belt 630 4 with Wear Resistant Bottom Cover
FAQ

Q1. Are you a manufactuer?

Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

Q2. What about the lead time?

1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel

Q3. How to pay?

1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service

Q4. How about package?

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
