    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Ask Lasest Price
    Certification : ISO9001
    Price : $20.00/meters >=50 meters
    • Product Details
    • Company Profile

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Product Description
    VR
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Property

    -- High strength

    -- High resistant to abrasion

    -- Low elongation

    -- Resistant to impact

    -- Suitable for long distance,large loading capacity and high speed transportation

    Manufacturing standards

    GB/T 7984

    DIN 22102

    JISK 6322

    AS 1332-2000

    SANS 1173:2005

    BS 490

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

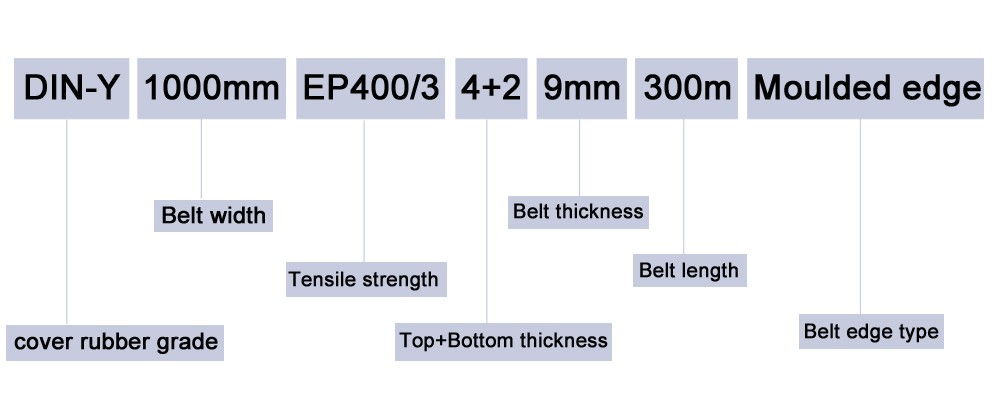

    Specification
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications
    Cover Rubber grade
    8MPA,10MPA,12MPA,15MPA
    18MPA,20MPA,24MPA,26MPA
    DIN-X,Y,W
    RMA-1,RMA-2
    N17,M24
    Belt width (mm)
    500,600.650,700,800,1000,1200
    1400,1500,1800,2000,2200,2500
    18",20",24",30",36",40",42"
    48",60",72",78",86",94"
    Tensile strength
    EP315/3,EP400/3,EP500/3,EP600/3
    EP400/4,EP500/4,EP600/4
    EP500/5,EP1000/5,EP1250/5
    EP600/6,EP1200/6
    330PIW, 440PIW
    Top+Bottom thickness
    3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,
    3/16"+1/16", 1/4"+1/16"
    Belt thickness
    3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
    Belt length
    10m,20m,50m,100m,200m,250m,300m,500m
    Belt edge type
    moulded(sealed) edge or cut edge
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications
    Application
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications
    You may like
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Conveyor belt fastener

    140E,190E, 1.5" 2",2.5"
    packed in carton box
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Conveyor belt vulcanizing machine

    Suitable for belt width upto 2600mm
    Suitable for both fabric and steel cord belt
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Chevron V conveyor belt

    Closed V, Open V type

    C5,C10,C15,C20,C25

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Sidewall conveyor belt


    EP400/3,EP500/4,EP630/3
    Sidewall height: from 40mm to 400mm
    Cleat height: from 35m to 350mm
    MOQ:5m
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    High quality wrapped V belt


    O,Z,M,A,B,C,D,E
    SPZ,SPA,SPB,SPC,
    3V,5V,8V,3L,4L,5L
    MOQ: 50pcs
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Raw edge cogged V belt


    AX,BX,CX,XPZ,XPA,XPB,XPC
    AX10X,AV13X,AV15X,AV17X,AV22X
    3VX,5VX,8VX
    MOQ:50pcs
    Quality control

    Step 1: Raw material inspection

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Rubber compound test

    Moving die rheometer analyzes the characteristics of Rubber Compound
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    EP fabric test

    Tensile strength test and elongation test when broken.

    Step 2: Advance equipment to guarantee quality from the details

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Calender process

    4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Forming process

    The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.

    Step 3:Finished belts inspection

    We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Length and surface inspection


    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Thickness inspection


    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    WIdth inspection


    Step 4: Technical data test

    We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.

    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Abrasion test


    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Adhesion strength test


    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications

    Tensile strength test


    Company Information
    EP300 Fabric Heat Resistant Rubber Conveyor Belt for High Temperature Applications
    FAQ

    Q1. Are you a manufactuer?

    Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.

    Q2. What about the lead time?

    1) 3--5 days for sample
    2) 15--20 days for mass production. If urgent,we have green channel

    Q3. How to pay?

    1) T/T or L/C through bank account
    2) Select Alibaba Trade Assurance Service

    Q4. How about package?

    1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
    2) Outer is packed with one ply water-proof PP fabric
